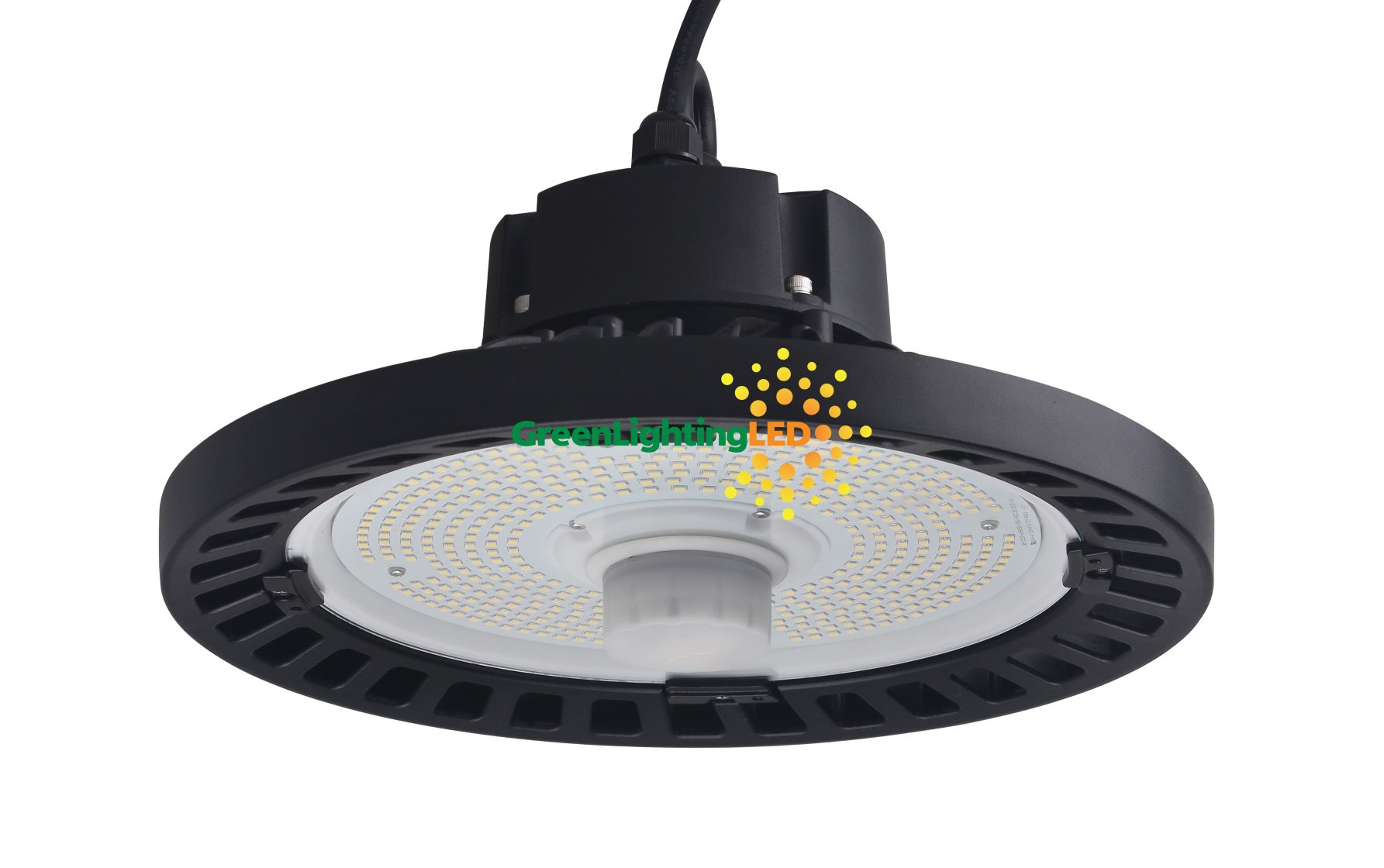

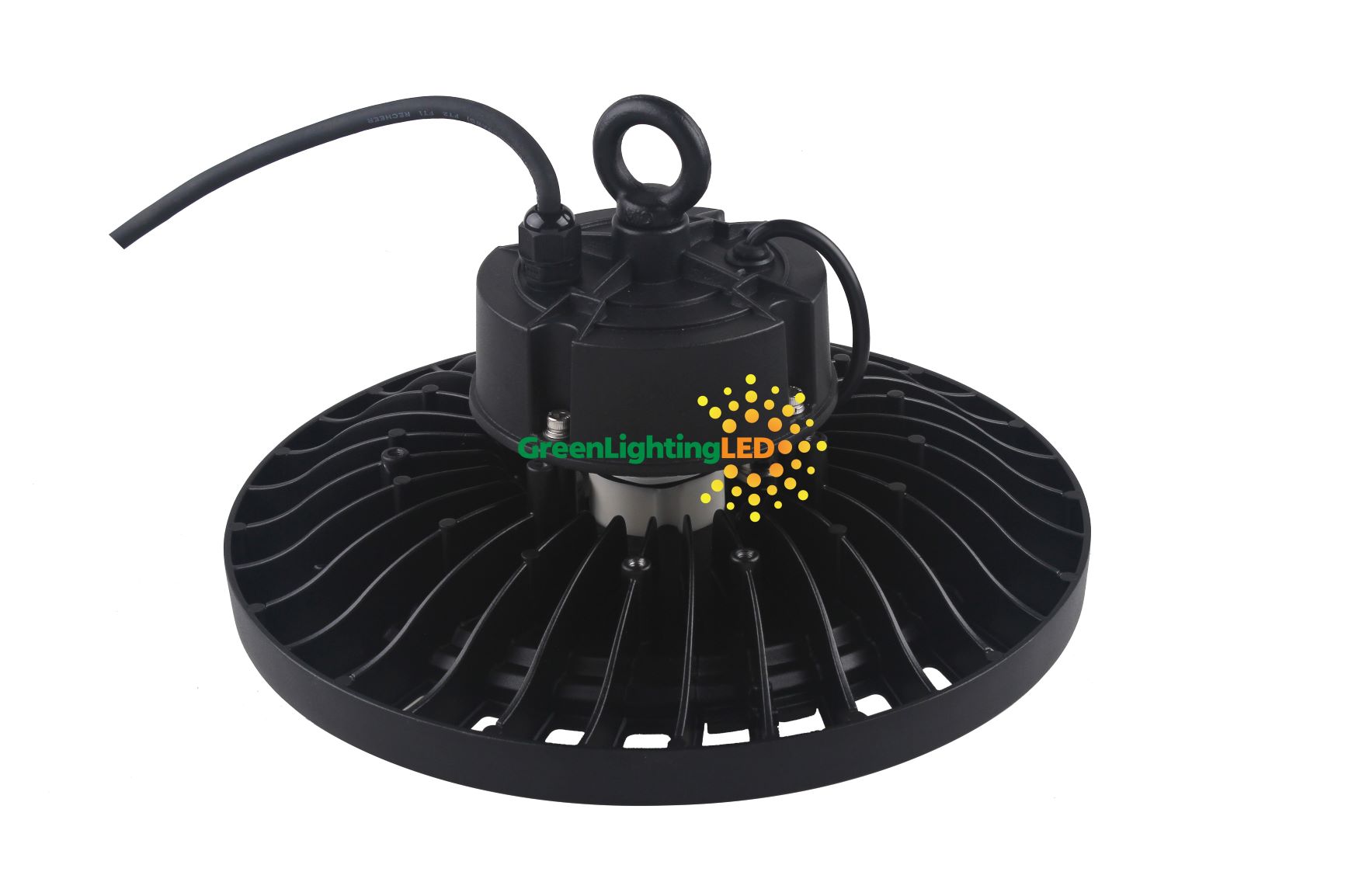

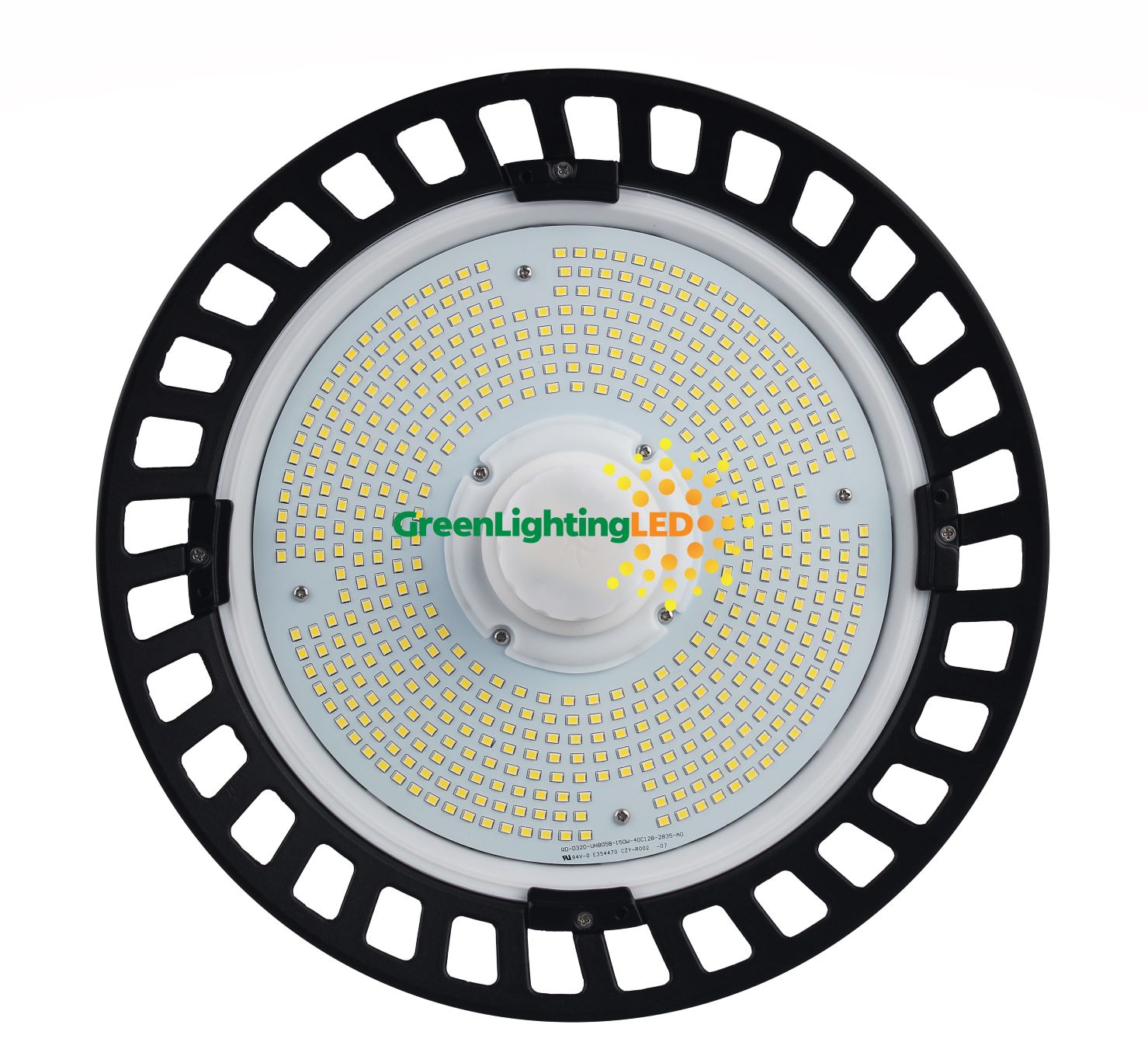

LED HIGH BAY FIXTURE | 100 Watt | 5000K
SKU: GLL-HB05B-100W-RBCGD1-BH-50
LED High Bay fixtures for high bay, low bay, warehouse, gymnasium and area lighting applications. Specifications listed under the additional information tab.
ORDERING GUIDE & EXAMPLE FOR STOCK INVENTORY:
GLL-HB05B-100W-RBCGD1-BH-50
GLL = GREEN LIGHTING LED | HB05B = PRODUCT SERIES | 100W = WATTAGE | R = DAERMAY Driver | B = Lumileds 2836 | CG = Clear Glass Lens | D1 = Product Version | BH = Black Housing | 50K = 5000K CCT
Additional information
| Weight | 6.5 lbs |
|---|---|
| Dimensions | 12.2 × 12.2 × 7.28 in |
| BEAM ANGLE | 110° |
| CERTIFICATIONS | cULus, DLC, RoHS |
| CRI | >80 |
| LED TYPE | Lumileds SMD2835 |
| INPUT VOLTAGE | 100-277V; 50/60Hz |
| OPERATING TEMP | -40°F~122°F |
| POWER FACTOR | >0.9 |
| THD | ≤20% |
| WARRANTY | 6 Years |
| WATERPROOF | IP65 Wet Location Rated |
| CCT | 5000K |
| LUMENS | 15,000 LM |
| EFFICACY | 150 lm/watt |
| BASE | O Ring |
| HOUSING COLOR | Black Housing |
